A Model View allows you to visualize any Revit Category or Layer Category within the context of a 3D model, sheet, or view. This type of view combines model geometry and project data, enabling users to review and interact with information directly in spatial context.
Mike Lee
Model Views work similarly to Drawing views in Layer. The difference is that instead of displaying data on a linked PDF, the data is displayed within the context of a Revit Model.
Creating a Model View

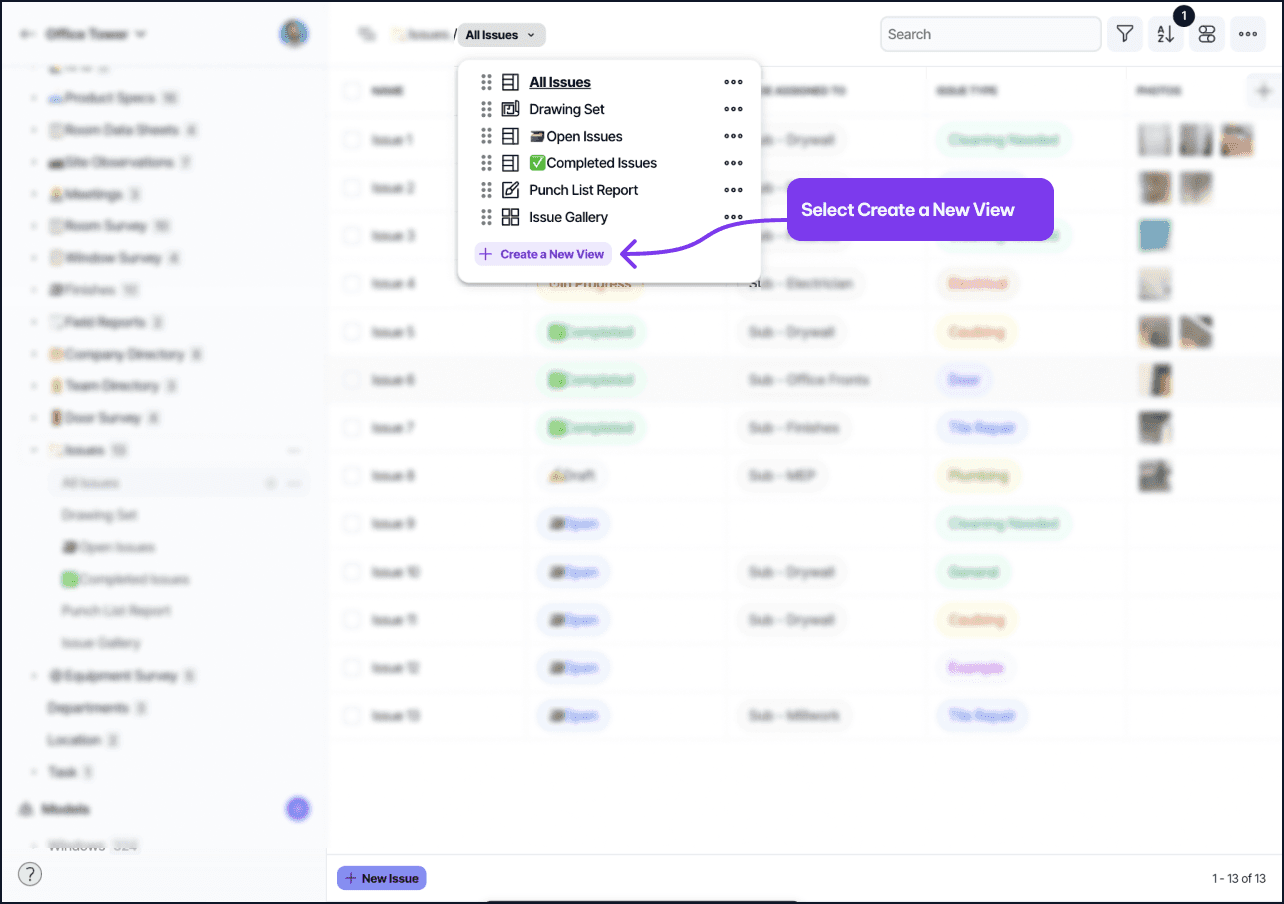

To create a Model View, start from any Category in Layer. Select “Create a New View” from the View Menu dropdown.
The Create New View menu accessed from the View Menu dropdown in a category.

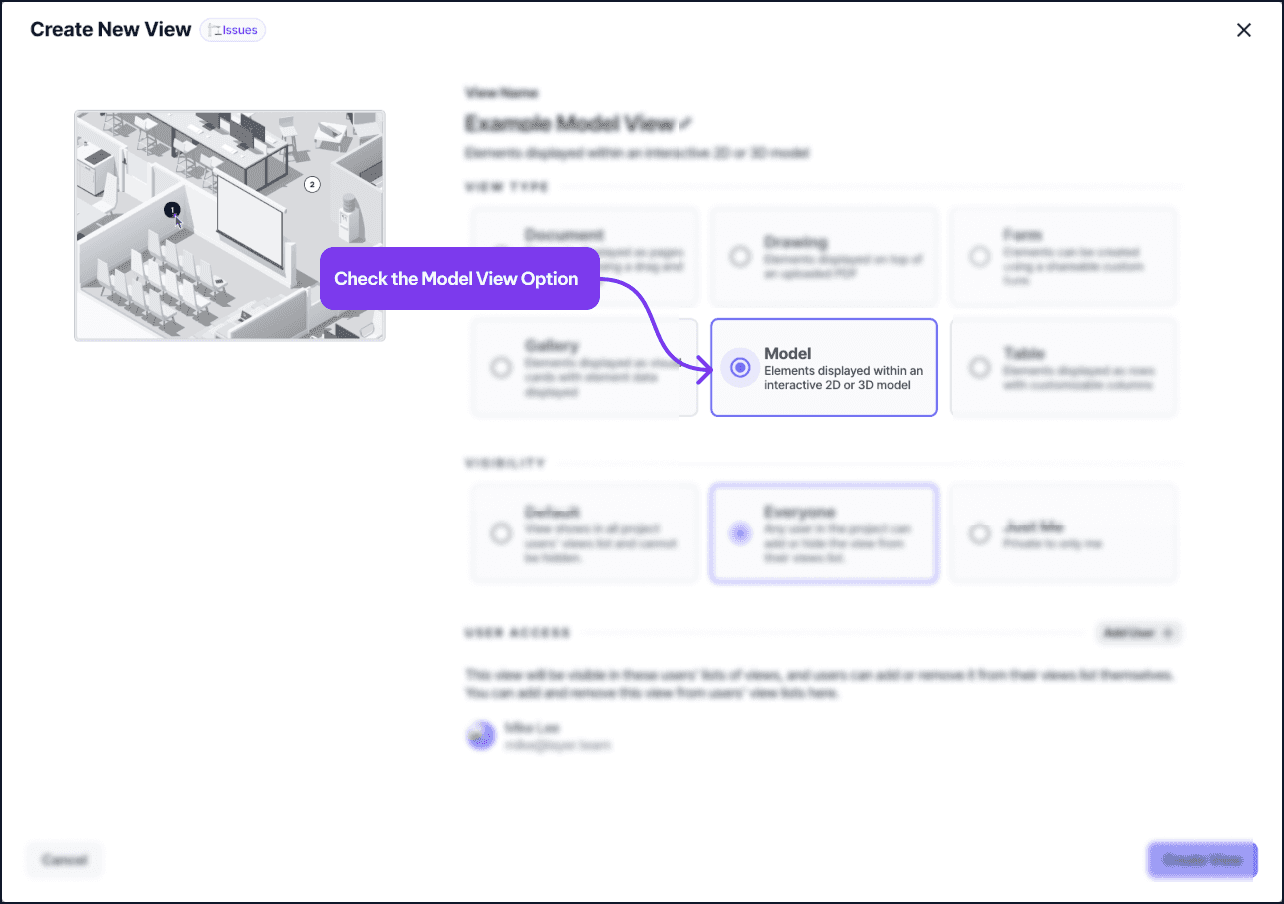

Next, select the option for “Model View” and give your new view a name.
Selecting Model View from the available view types in the create view dialog.

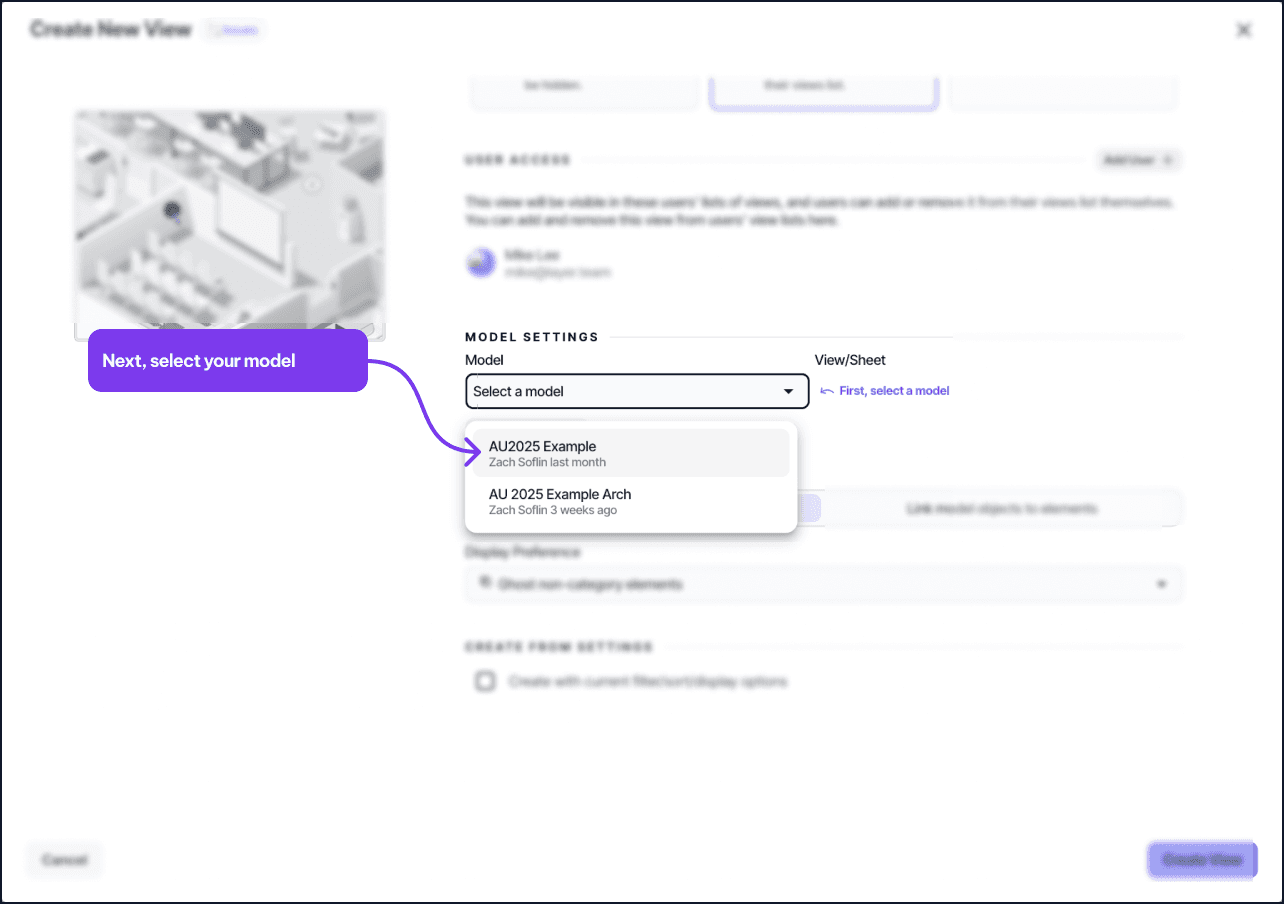

Then, select the model with the view you want to use.
Choosing the linked Revit model that will host the Model View.

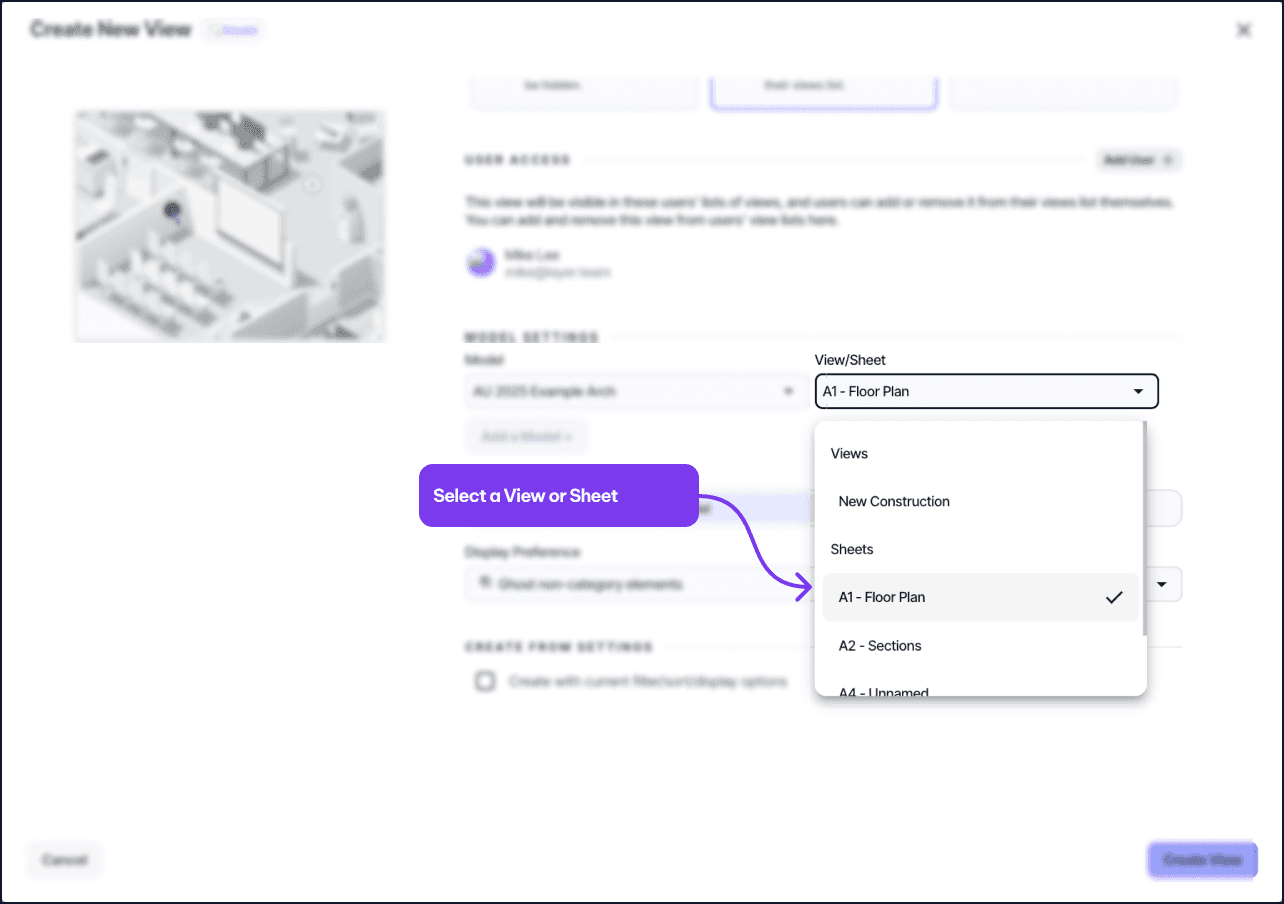

Select the View or Sheet you wish to view data in.
Picking a specific Revit view or sheet to overlay Layer data onto.
Choose any other options & select “Create View”.

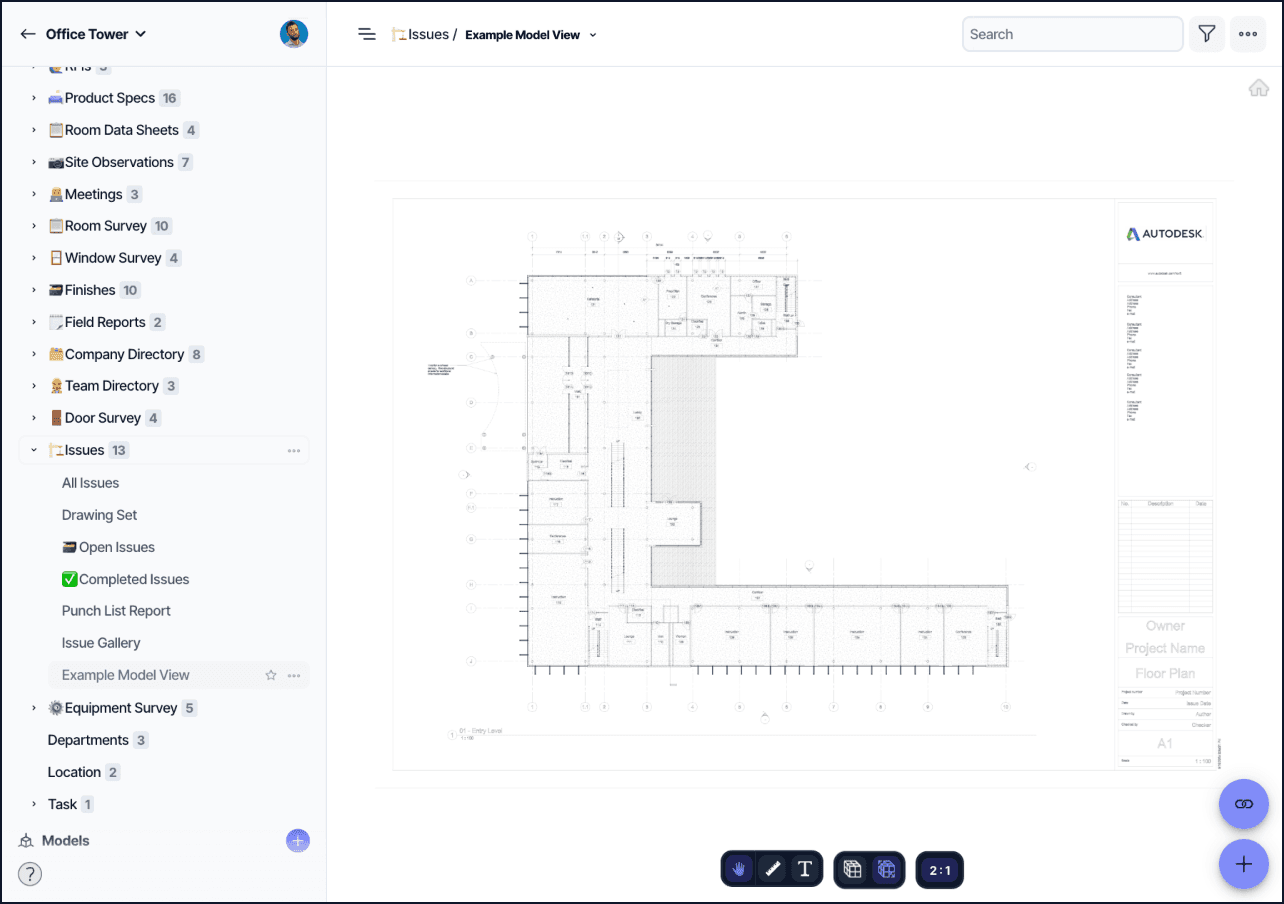

A completed Model View with Layer data visualized inside the Revit model context.
