How an architecture firm made attaching photos to a model 90% more efficient
Key Results
1200m³ of facade walls surveyed. (That’s 12,9k sq. ft!)
90% reduction in time spent coordinating pins.
1 app to capture, store, and access data in Revit.
DMA Architects often works on renovation projects, including older, sometimes historic or heritage buildings. Existing documentation for these structures is often outdated or nonexistent, leaving the team with no pre-existing drawings or models to work off of at the start of a project. Their primary challenges include:
Creating a model with limited data to start from.
Efficiently documenting the current condition of the building.
The DMA team is no newcomer to the restoration and renovation space. They’ve been doing this type of work for years, previously using a legacy system of Excel sheets with some Dynamo mixed in.
The aim was to have everything in Revit natively, including quantities, tags according to their standards, and a history of building conditions.
When the team started looking for a new solution, they knew their ideal new tool would:
Facilitate on-site data collection
Allow for easy classification
Ensure data is accessible and traceable
Preserve all the information for future use
DMA Found Their Solution in Layer App
The DMA team began testing the Layer App during a masonry and window replacement project at one of the University of Montreal’s pavilions. Built in 1956, this building, designed by architect Ludger Venne, features art-deco details. Standing between 7 – 9 stories, it has around 300 intricate wood and inox steel windows.
The restoration work of the building was split into various phases, with each phase focusing on a different facade. Layer was piloted on the second phase, which included inspecting the masonry and general building envelope conditions.
Streamlining the Existing Conditions Survey and Data Management Process

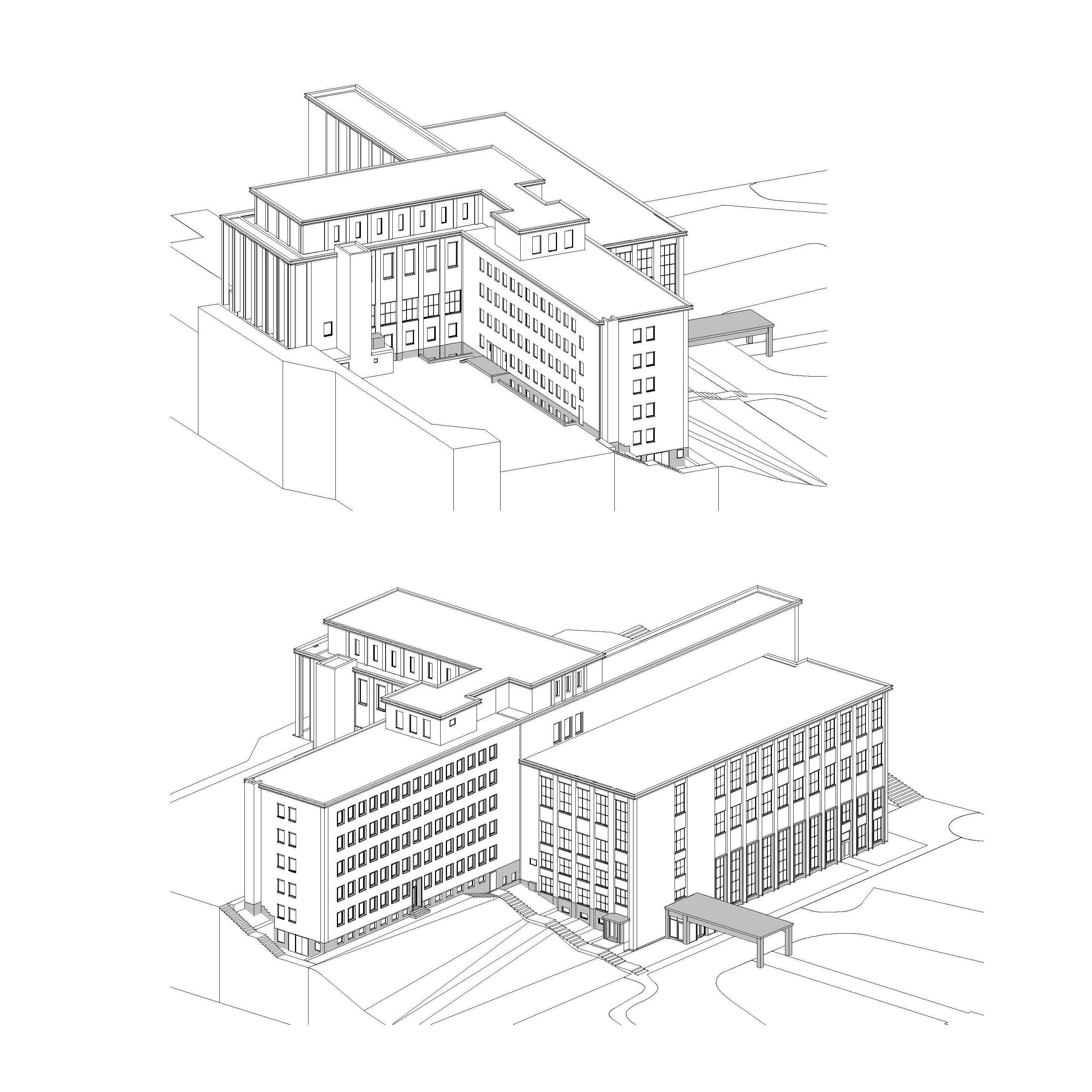

DMA created a simple model for this project, containing only basic walls and windows. The windows bore tags linking them to the nomenclature from the original documents and on-site measurements, as well as assigning certain parameters to the walls.
Before going on site, DMA followed a simple 4-step process to prepare for data capture:
Link the Revit model with Layer.
Prepare and publish a set of sheets with elevations from the model for inspections.
Create categories in Layer for elevations, potential issues, and deficiencies based on Phase 1 documentation.
Define forms within Layer to describe masonry deficiencies and enable reporting of each issue by elevation instantly.

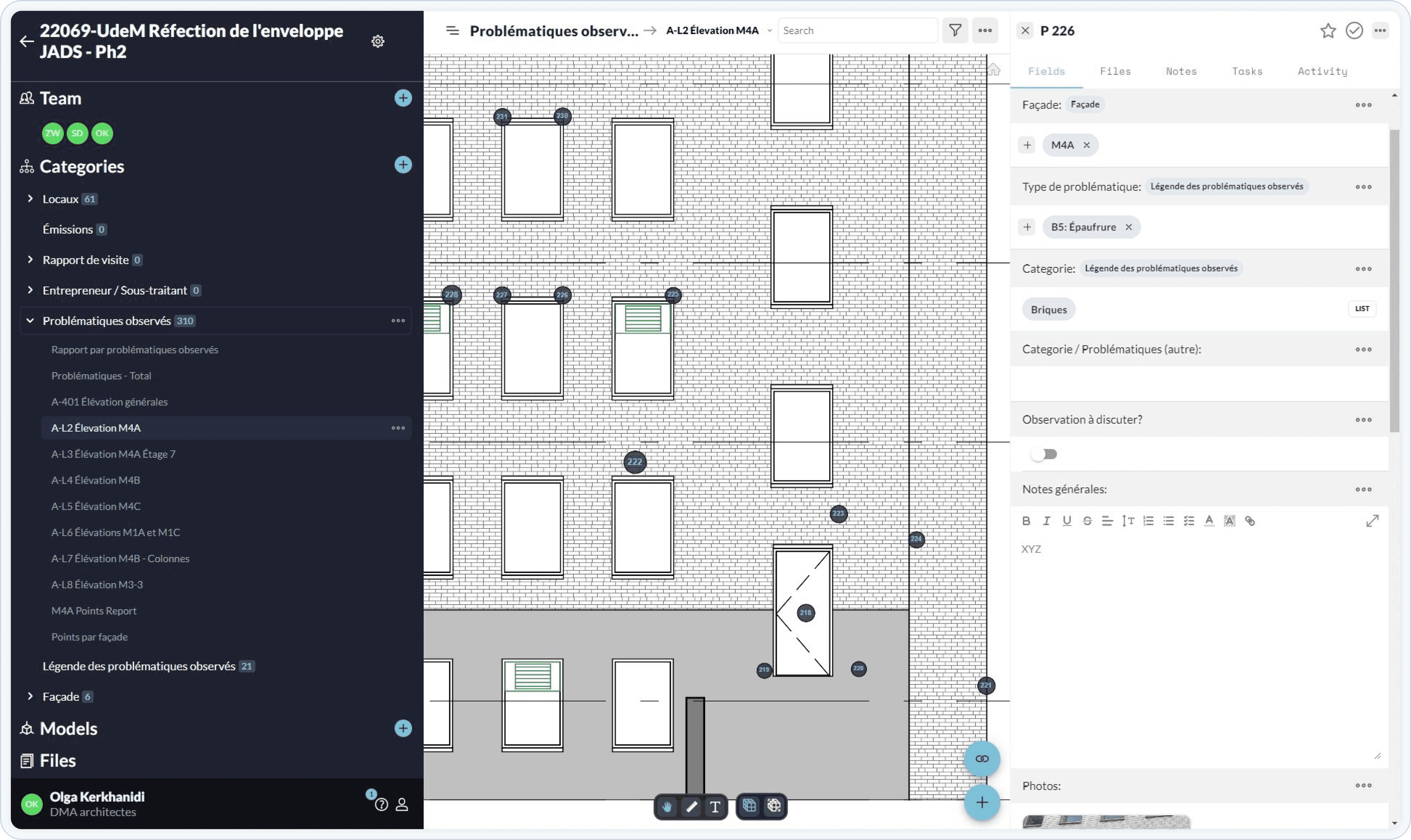

On-site inspections employed the forms in Layer App that were created during preparation. These forms listed deficiency options, including types of issues, facade indications, a field for photographs, and markers indicating the deficiency’s location. Feedback from the inspection team highlighted the ease and logic of the data entry process.
Layer’s benefits were clear from the start. Sometimes on-site deviations occurred, and the tool could be updated in the field to adapt to changes from the initial site inspection plan. This flexibility was crucial.
Model Views and On-Site Adjustments

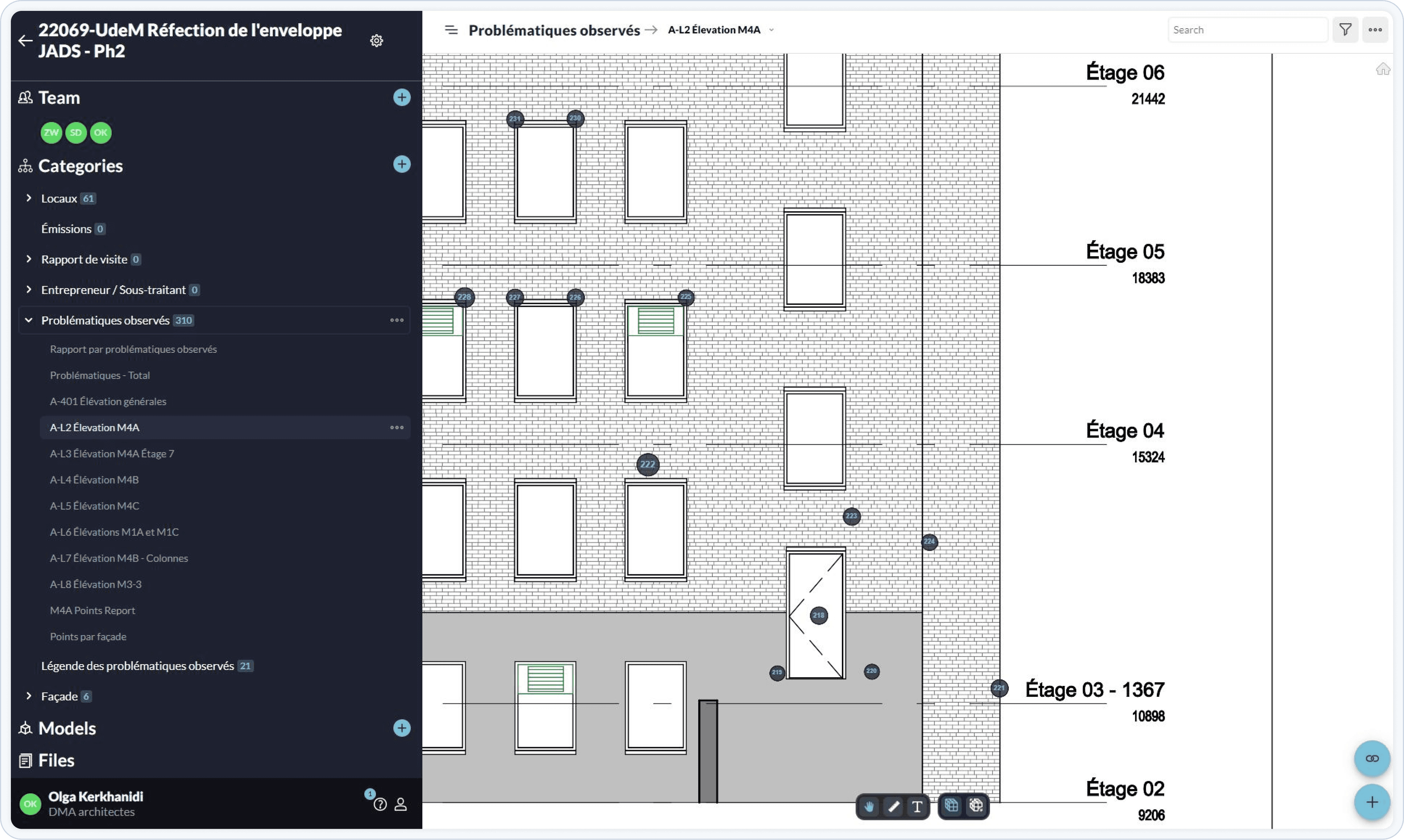

Occasionally, after a site visit, DMA realized that the model didn’t accurately represent part of the building, such as exterior material and window placement. With Model Views, DMA could easily upload a corrected version from Revit, automatically updating the sheets. Then, deficiency markups followed.
Layer’s capability to standardize data across work streams was a significant advantage, ensuring consistency as data was shared between teams. Once the survey was complete, workers in the office could display Model Views of observed issues and export data about these problems and their locations. One significant advantage of the tool is the ability to export data regarding these deficiencies along with their coordinates.

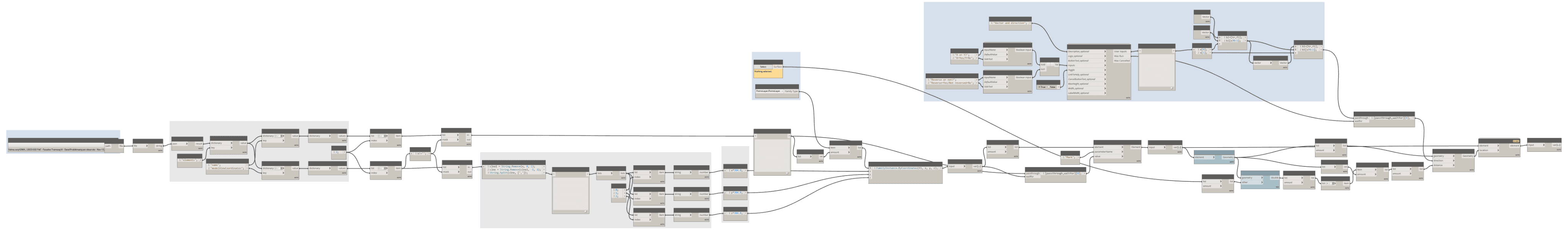

Using a Dynamo script, they processed the JSON file, transferring Layer markups into the Revit model at the precise 3D location. This script generated a placeholder, a petite 3D element representing the marker, containing comprehensive deficiency data, keeping all the data in Revit.
Layer’s Impact on DMA Architects
Layer, with its organized data management and ability to integrate with the Revit model, is a significant advancement for DMA Architects. It allows for detailed inspections without the need for intricate modeling. Layer’s consistent organization, intuitive design, and versatile data management made it the perfect tool for collating all project information.
