What is the Element Detail Pane?

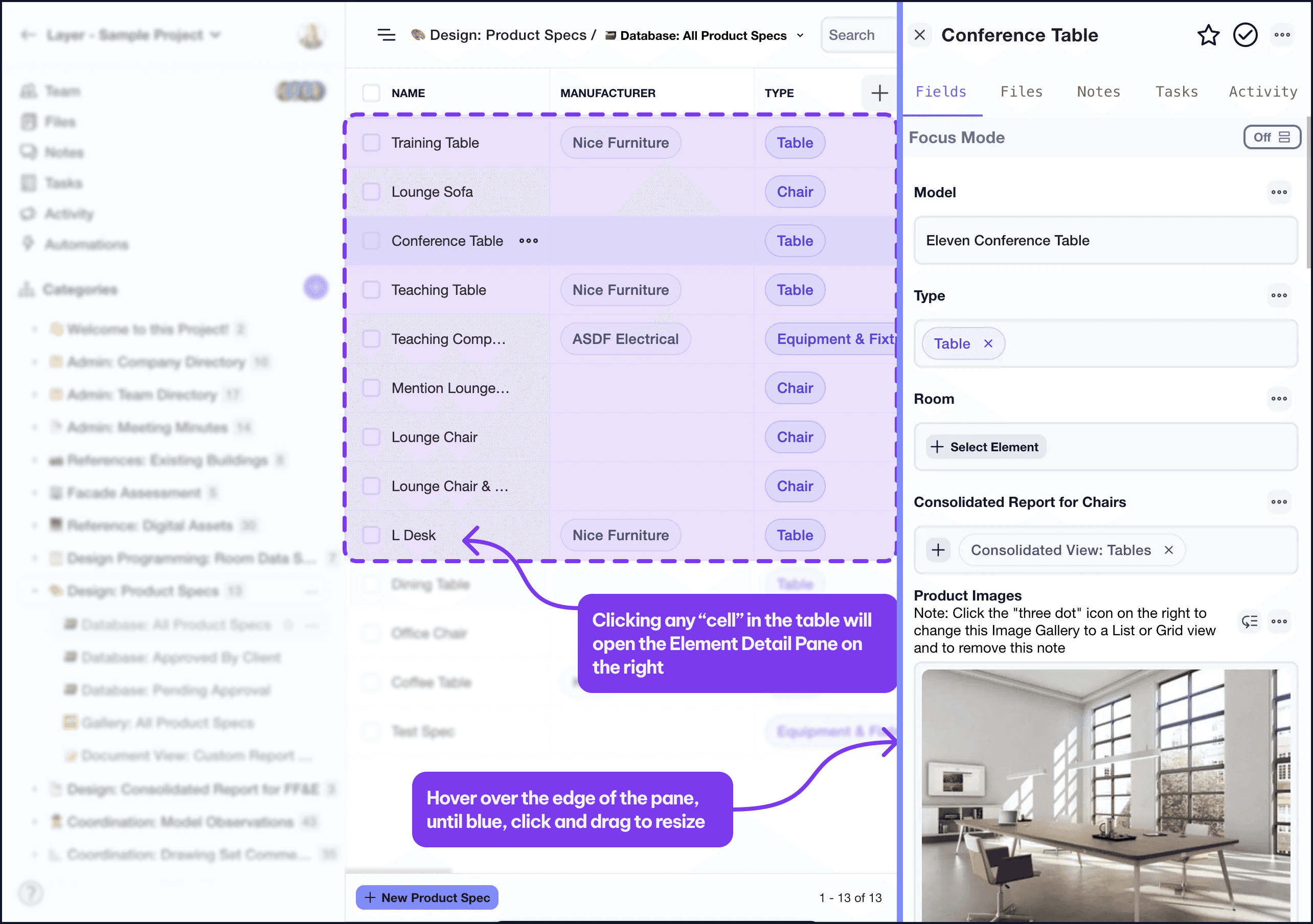

The Element Detail Pane is the primary method of interfacing with and inputting data for Element fields. It is found on the right hand side of the screen (on larger displays) or filling the screen (on small displays) after clicking on an Element from a view or navigating to it via URL.

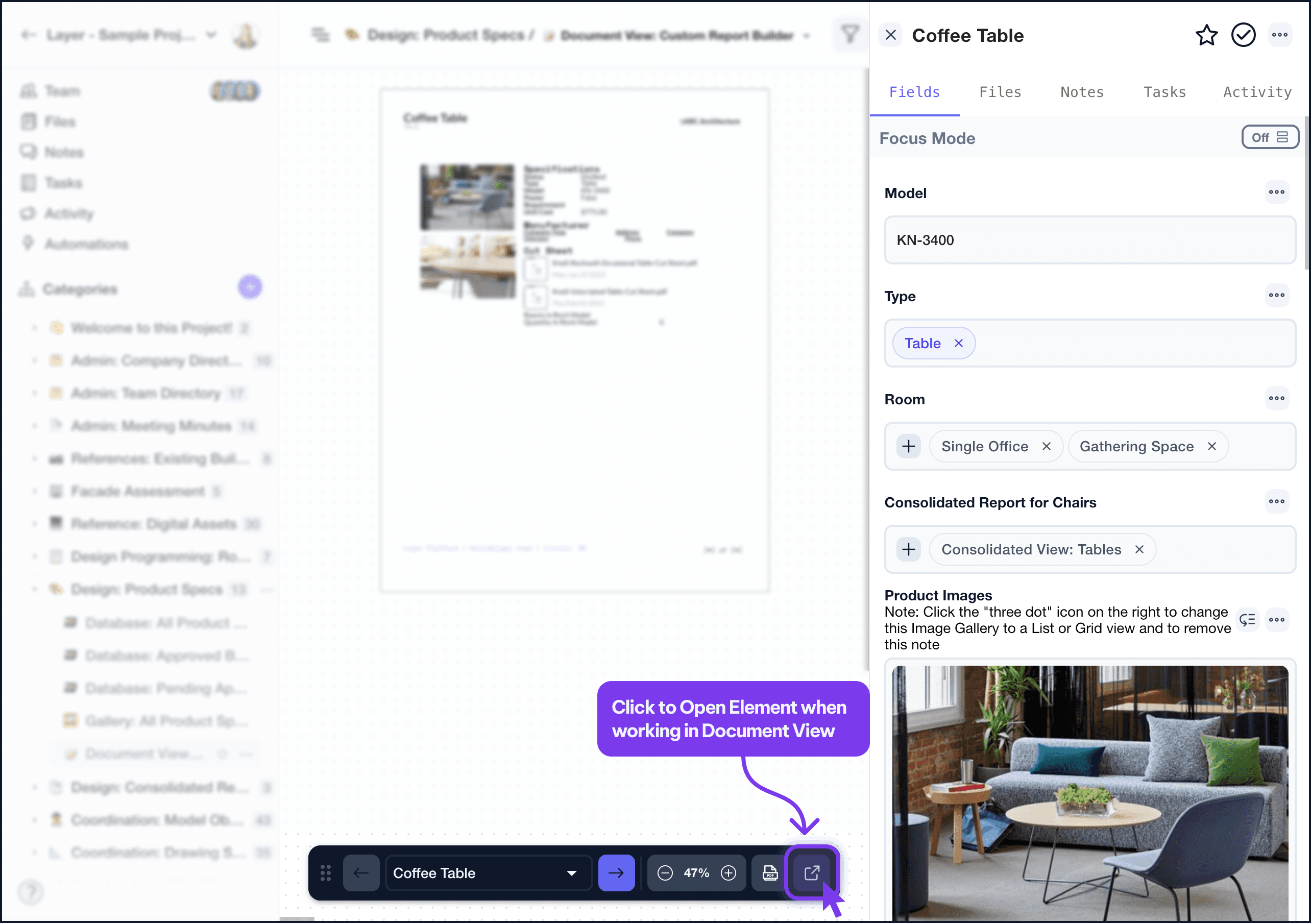

If you are in a Document View, you can click the button on your bottom toolbar to open the Element Detail Pane, or click on any of the field data in the layout to jump to that field. You cannot be editing the document view layout for this to work.

See below for further information on the different sections of the Element Detail Pane.

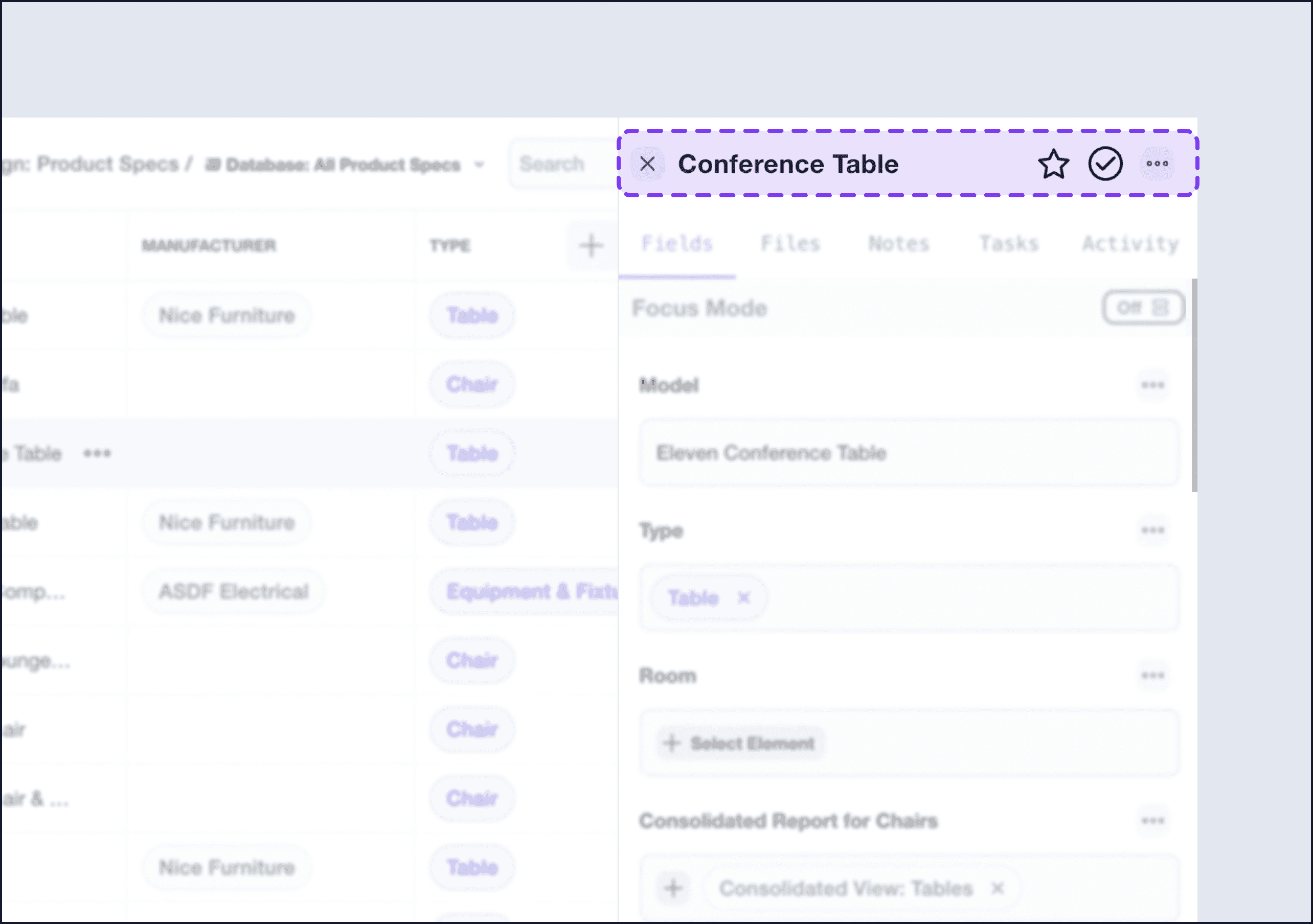

Header

  • Element name: Click to edit

  • Starred and completed buttons: Indicate status and click to toggle

  • Element context menu: Perform element based actions

    • Updating the name

    • Subscribing to changes - get notifications any time this particular element changes

    • Edit Category Fields

    • Export Element - export just the current element in a document view report

    • Duplicate Element

    • Delete Element

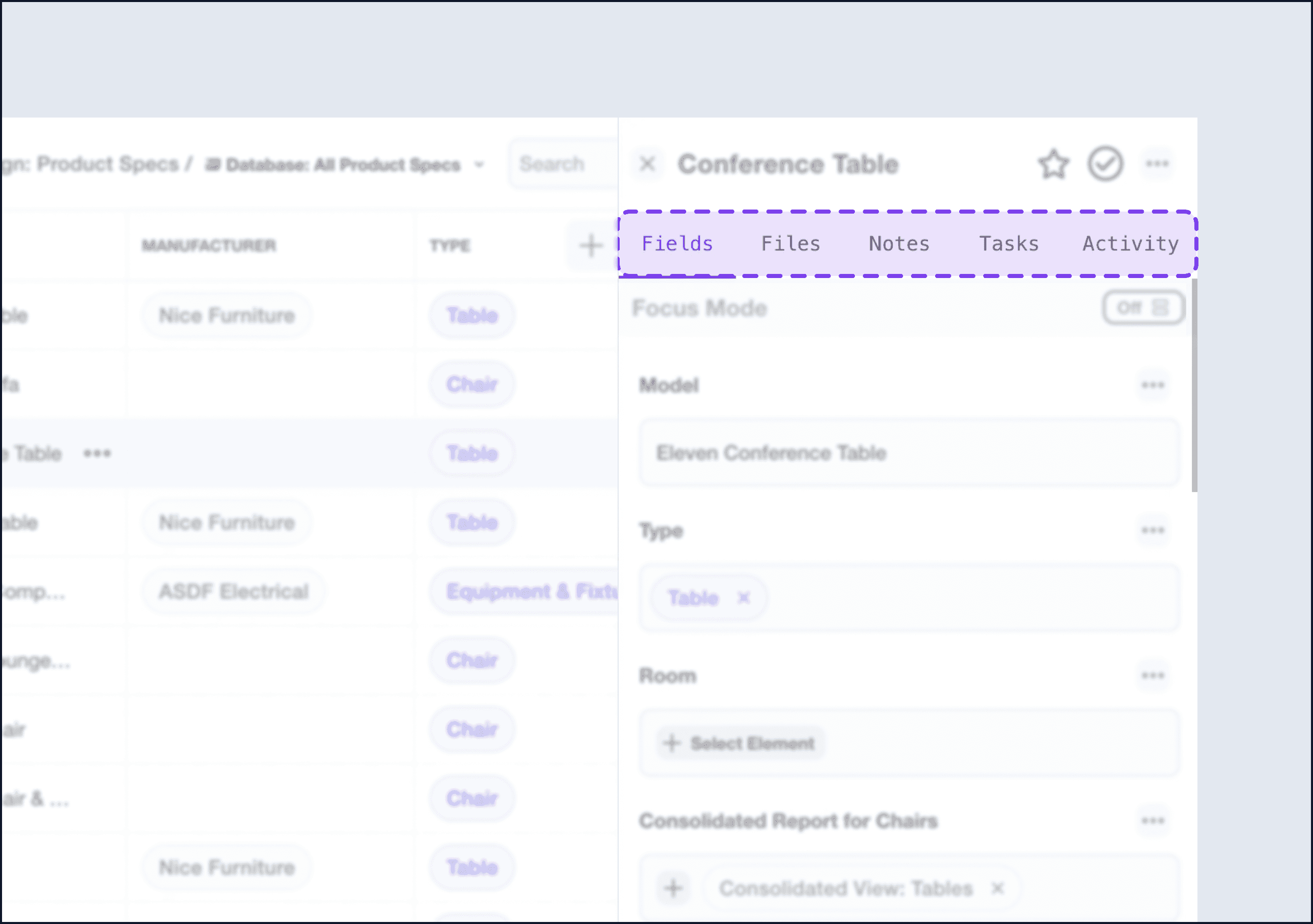

Section Tabs

Each of the following tabs below the header have different types of information available on the element.

Fields

Fields are the primary source of information on an element. Different fields types and how they’re used and managed can be found in Fields.

💡 Use Focus Mode to limit the fields visible in the element detail pane to those displayed in the current view.

The bottom of the fields tab includes a button to edit the fields in the current element’s category.

Files

Files in a project can be associated with a single field, element, both, or neither. The files tab in the Element Detail Pane will display all files associated with the given element, regardless of field association. To see files associated with a particular field only, navigate to that field in the Fields tab.

Notes

Like files, notes can be associated with a single field, element, both, or neither. The notes tab in the Element Detail Pane will display all notes associated with the given element.

Tasks

Like notes, tasks can be associated with a single field, element, both, or neither. The tasks tab in the Element Detail Pane will display all tasks associated with the given element.

Activity

The activity tab displays a log of user events that have modified the state of the element. Use these events to identify and/or revert recent changes to element data.
